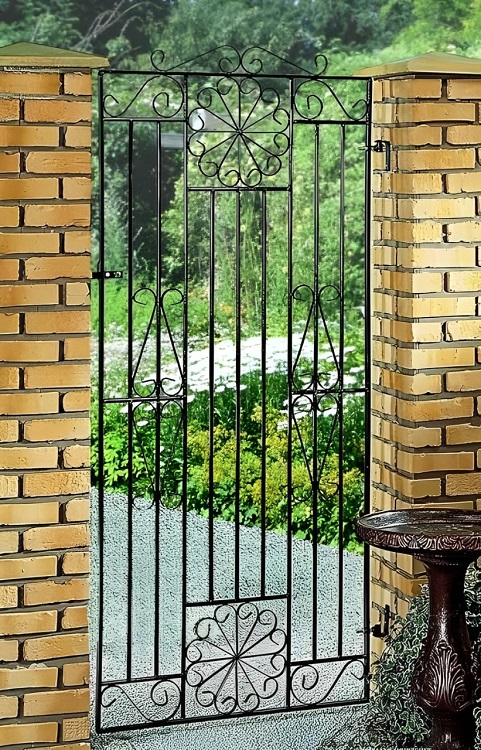

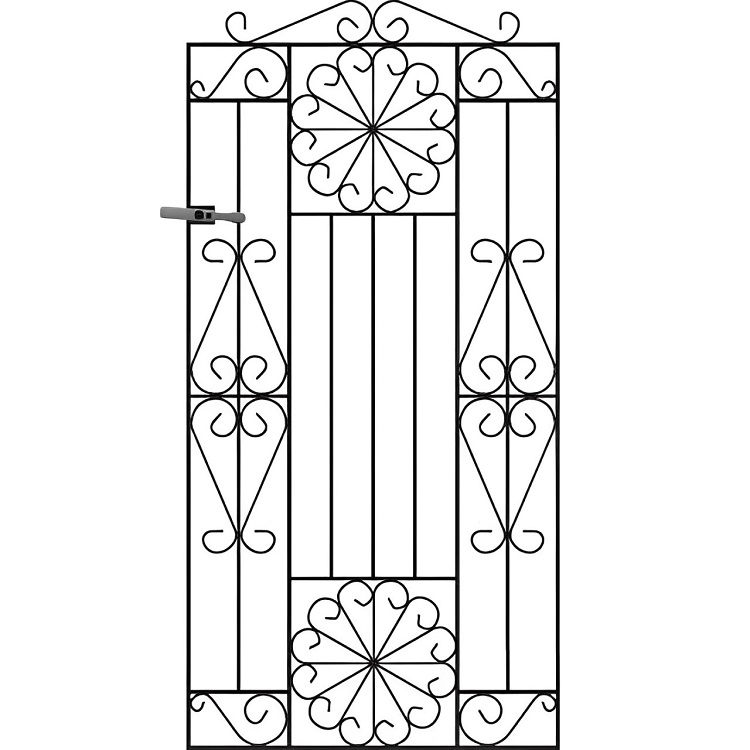

The Regency Wrought Iron Style Metal Side Gate is an outstanding choice for enriching any garden entrance. Suitable for all property styles, it features a welded 20mm x 8mm solid steel framework and is available in numerous standard sizes to accommodate various opening widths. With detailed wrought iron-style scrolls to enhance its appearance, the gate is easy to install and includes surface-mounted adjustable hinges and a tip latch mechanism compatible with masonry, steel, and timber surfaces.

Regency Side Gate Specification

• Manufactured in the UK.

• 20mm x 8mm flat bar steel frames.

• 10mm diameter round metal infill bars.

• 10mm x 3mm wrought iron style scrollwork.

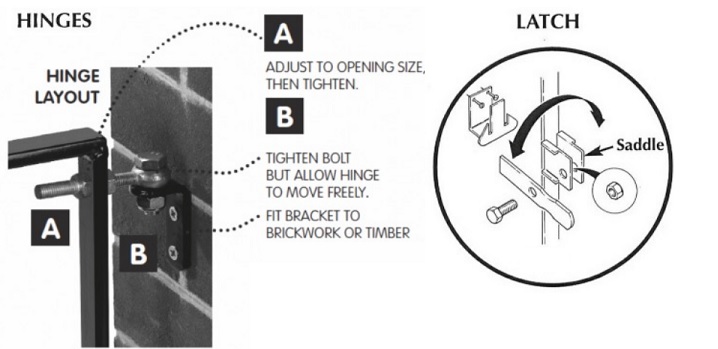

• Supplied with adjustable hinges and a universal latch.

• Choose from a primed black undercoat option or a zinc plated and pre-finished black powder coated paint.

Height (once fitted)

• 1830mm (6ft)

Ordering Sizes

• Width: To determine the ordering size, measure the opening width between brickwork or supports. Make no further calculations, as our "fits opening" width in the drop-down menu already incorporates the space required for the hinges and latch.

• Height: The "Height (once fitted)" is measured from the ground to the top of the horizontal frame. This dimension already includes an allowance of 50mm (2") for ground clearance. The top scroll is not included in this measurement.

Example

If the gap in the brickwork measures 762mm, you should select a gate labelled "fits opening 762mm."

Do You Need Posts?

Metal posts will be needed to fix the gate if there isn't any suitable masonry or existing support structure. In thee instances, you must ensure sufficient space is available to accommodate these components.

Example – A gate designed to fill a 762mm gap, when paired with two 50mm posts, will require a total space of 862mm.

Need More Information About Wrought Iron Style Metal Side Gates?

Look at our measuring guides if you require assistance selecting the correct gate size. If you want to learn about installation, our sample fitting instructions are useful. Alternatively, check out our FAQ section, where we've answered many comm queries.

Other useful sections include the ordering guide, buying guide, and technical advice pages. Alternatively, don't hesitate to contact us for any other concerns or queries.
