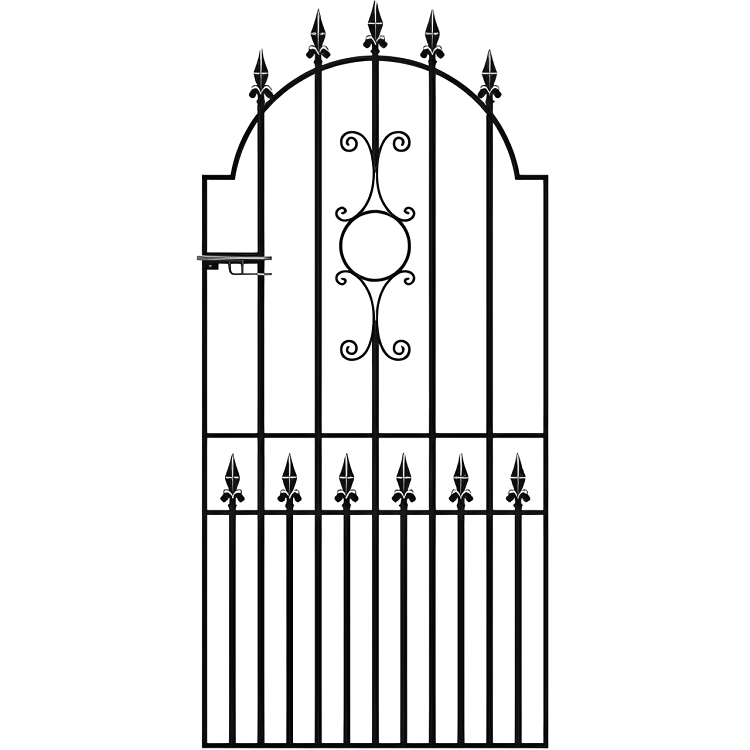

The Royale Grange Wrought Iron Style Metal Side Gate will provide a bold statement to the entrance of any property. Suitable for side access points, pathways or any other area of the home and garden that needs added security without compromising aesthetic appeal, the gate offers great value for money. It is available to buy online in a choice of sizes to suit many common residential requirements. Manufactured in the UK, the Royale Grange design benefits from a heavy-duty solid steel construction consisting of 40mm x 30mm hanging stile, 40mm x 10mm closing stile, and 40mm x 10mm cross rails, and 16mm diameter metal infill bars. In order to provide added height and a decorative feature, the Grange design has an archtop and double row of fleur-de-lys finials, a central wrought iron style scrollwork detail and the bottom portion of the gate is fitted with dog bars to reduce the spacing between infills.

Royale Grange Side Gate Specification

• Heavy-duty solid steel construction.

• Decorative central scrollwork creates a striking appearance.

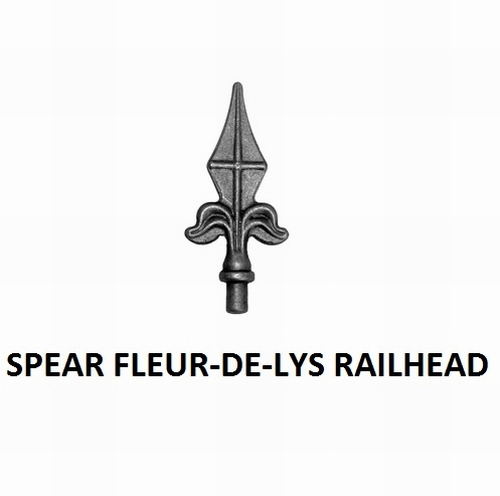

• Fleur-de-lys finials.

• Manufactured in the UK.

• High strength frames and infill bars.

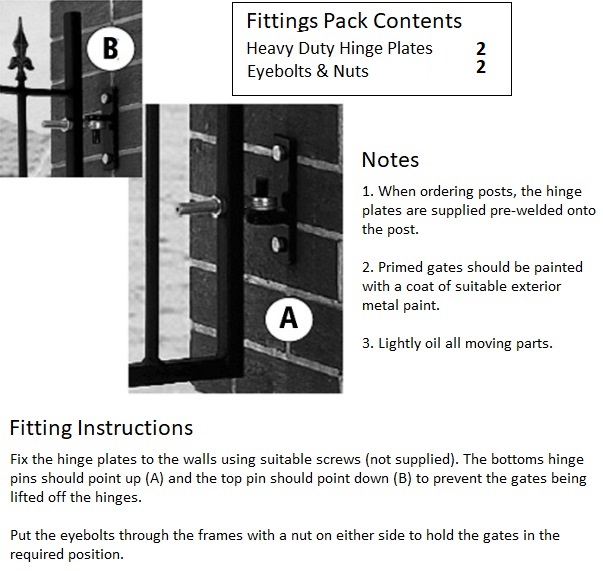

• Supplied with adjustable hinges and a sliding latch.

• Primed black (undercoat) ready for painting prior to installation.

• Designed to be RIGHT hand hanging only (as viewed from the roadside).

Height (once installed)

• 1980mm (6ft 6”)

Ordering Sizes

• Width: To establish the ordering size, measure the space between existing walls or posts. You should not perform any further calculations because our "fits opening" size, which is displayed in the drop-down menu, already includes the space necessary for the hinges and latch.

• Height: The "Height (once installed)" measurement includes an allowance of 50mm (2") for ground clearance. This is measured from the floor to the top of the horizontal framework (this does not include the finials on the top rail). You should also be aware that because of the shape of the arch, the 991mm wide gate measures 6′ 6" (1.98m) high when hung. The 1067mm width will be a little higher, and the 914mm width will be slightly shorter.

Example

If the gap size between existing walls measures 914mm, you will need to order the gate to "fit opening 914mm".

Do You Need Metal Gate Posts?

If there isn't an existing support structure in place to attach the hinges and latch, metal posts will need to be installed, so please remember that you'll need more space to accommodate these items.

Example – A gate to fit an opening of 914mm combined with 2 x 100mm posts will need an overall space of 1114mm.

Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.

Searching for Other Facts About Our Wrought Iron Style Metal Side Gates?

If you are unsure what size to order, please view the measuring guide. You can also find general information in the frequently asked questions or within the buying guide, ordering guide, installation guidance, technical advice, and case studies pages.

If the width you need to order is not displayed in the drop-down menu, go to our made to measure gates section to discover more about this popular option. If you have any other issues, contact us for advice.
