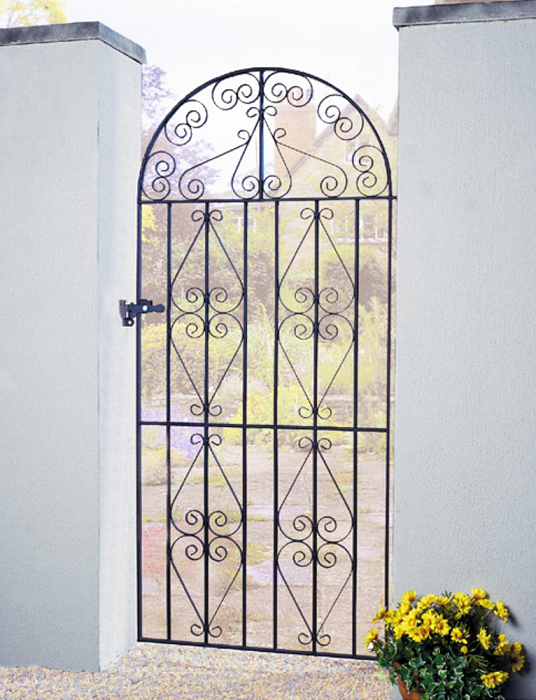

The Stirling Bow Top Wrought Iron Style Metal Side Gate will create a magnificent statement to any entrance at a very competitive online price. Available to buy in various sizes, the gate is manufactured from solid steel frames and infill bars to ensure strength and reliability, whilst the decorative wrought iron style scrollwork further enhances the aesthetic appeal. The gate features an archtop combined with traditional design elements making is suitable for various architectural property types. For ease of installation, the Stirling bow top design includes surface-mounted hinges and a universal latch mechanism, whilst the low maintenance zinc plated and black powder-coated paint finish protects against rust or corrosion of the steel.

Stirling Bow Top Side Gate Specification

• Attractive archtop profile.

• Manufactured from solid steel components.

• 25mm x 10mm metal frames.

• 10mm solid round metal infill bars.

• 10mm x 3mm decorative metal scrollwork.

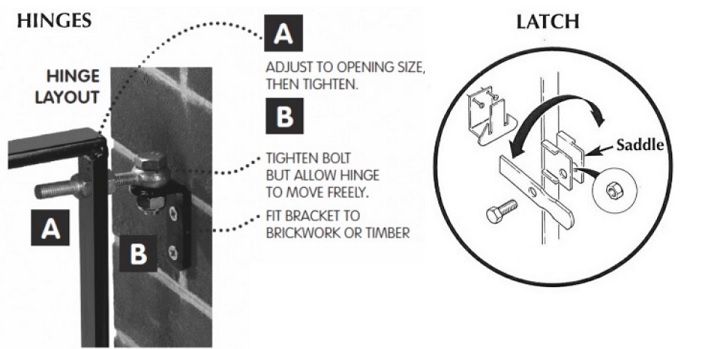

• Includes hinges and a universal latch

• Can be installed left or right-hand hanging.

• Zinc-plated and powder-coated black.

Ordering Sizes

• Width: Measure the distance between brick walls or existing posts to establish the opening size. This dimension is the size you need to order. You do not need to make any other allowances as the “fits opening” size shown within the drop-down menu includes the space required for the hinges and latch.

• Height: The “physical height” is measured from the underside of the frame to the top of the arch. We recommend leaving 50mm (2”) for ground clearance when installing the side gate.

Example

If the gap size between brick walls is 762mm (2ft 6”), you should order a gate to “fit opening 762mm (2ft 6”).

Do You Need To Install Metal Gate Posts?

When metal posts are required (due to the lack of walls or pillars), it is essential to factor in the additional space needed for these items.

Example – A gate to fit an opening of 762mm combined with 2 x 50mm posts will need an overall space of 862mm.

Do You Require Extra Help & Advice Before Purchasing a Wrought Iron Style Metal Side Gate ?

Read the measuring guide if you need help choosing the right size gate. You can also discover solutions to many simple questions in our FAQ section.

Other information is alos available within the buying guide, ordering guide, installation guidance, technical advice, and case studies pages.

If you have not been able to find the exact size gate you need to suit your specific requirements go to our made to measure gates category to dicover more about this popular option. If you have any other concerns, please contact us for guidance.
