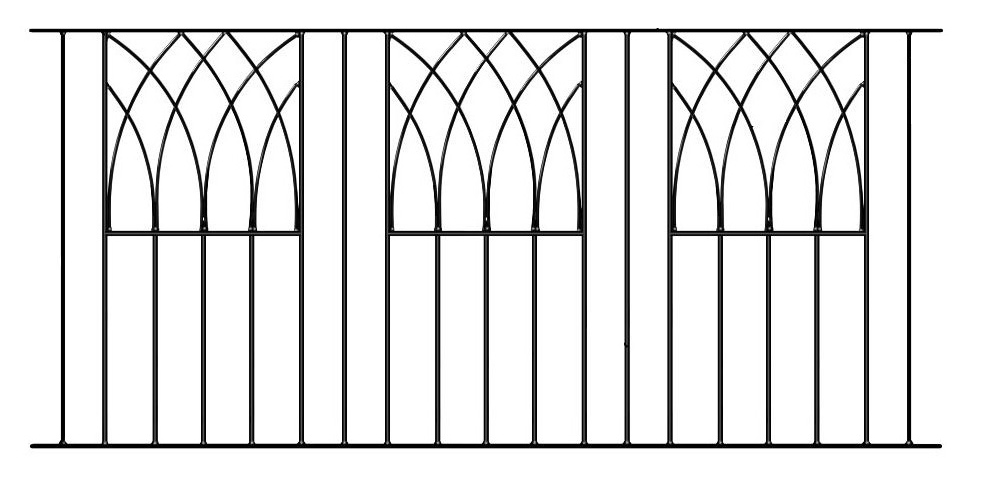

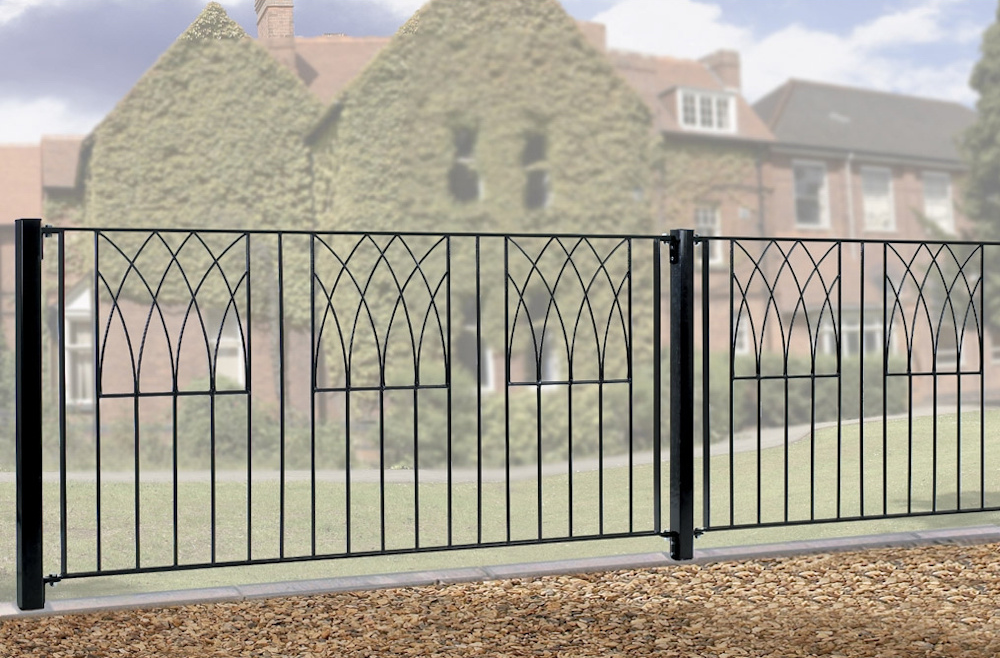

Abbey Wrought Iron Style Metal Fence Panels are an excellent option for any homeowner looking to make a bold statement to the boundary of their property. The metal fencing is manufactured in a modern style and features three distinct decorative elements on each panel for an eye-catching appearance whilst the solid metal infill bars and frames provide strength and rigidity. Ideal for a range of applications, the Abbey design is supplied in low maintenance zinc plated black powder-coated paint finish as standard to help protect against rust and corrosion, whilst the surface mounted fixing brackets are ideal for mounting to existing masonry structures or metal and timber posts.

Abbey Metal Fencing Specification

• Visually appealing design

• Suitable for a variety of applications

• Constructed from 25mm x 6mm solid metal frames and 10mm infill bars

• 6mm decorative infill bars

• Zinc plated (electro galvanised) and powder coated black.

• Supplied with fitting brackets

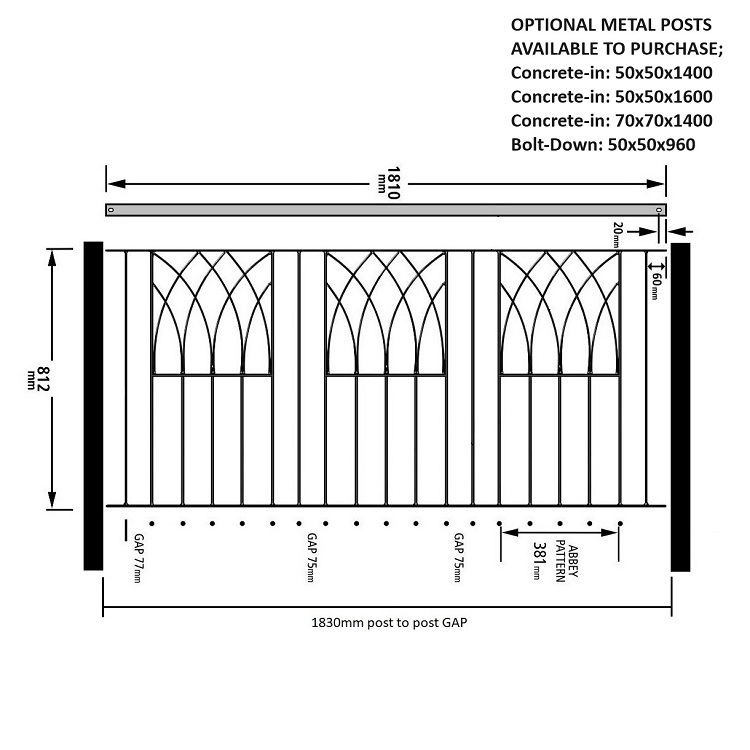

Fits Opening

• 1830mm (6ft)

​

Physical Height

• 815mm (32”)

Ordering Sizes

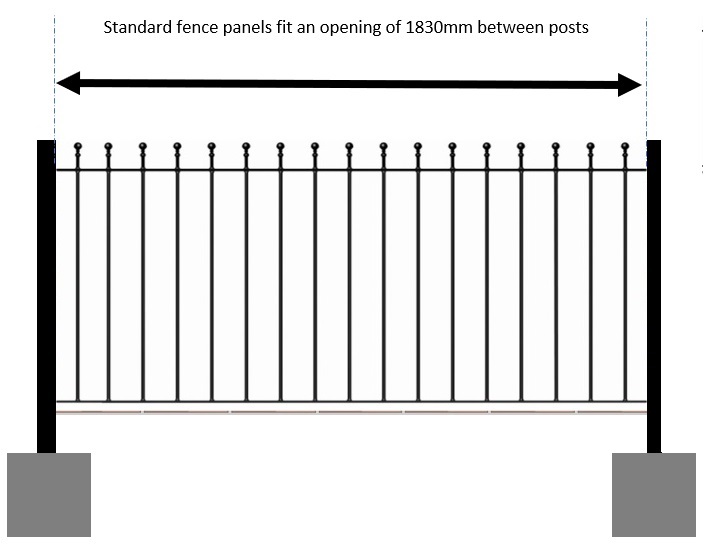

• Width: Our “fits opening” dimension is the actual gap size that the fencing will fit into, including the space required for the fixing brackets. This means the gap you will need between existing pillars, posts or other support structures needs to be 1830mm.

• Height: The “physical height” dimension makes no allowance for ground clearance. For best results, we recommend 50mm clearance between the finished floor level and the underside of the frame.

Do you Need to Use Metal Posts?

If no suitable support structure is available and several panels are required, you will need to factor in the space needed for metal posts.

Examples

• 1 x fence panel and 2 x 50mm posts will require 1930mm overall space.

• 2 x fence panels and 3 x 50mm posts will need a total overall length of 3810mm.

• 3 x fencing panels and 4 x 50mm posts will require 5690mm overall space.

Compatible Metal Fence Posts

If you need to order suitable posts there can be found here:

• 50mm (2”) Flat Top Square Metal Post – Concrete in

• 50mm (2”) Ball Top Square Metal Post – Concrete in

• 50mm (2") Flat Top Square Metal Post - Bolt Down

• 50mm (2") Ball Top Square Metal Post - Bolt Down

Looking for Help & Advice Before Placing an Order?

For further assistance please read the measuring guide. Alternatively if you need a made to measure size or would like help and advice prior to ordering, please contact us for support.
