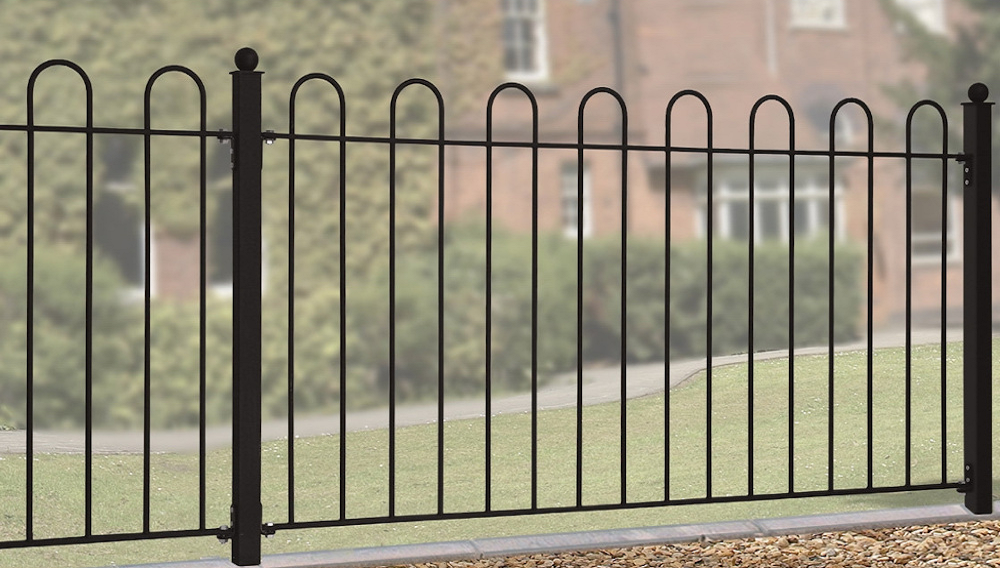

The Court Wrought Iron Style Metal Fence Panel is an excellent option for any property owner looking for a simplistic design at an affordable price. Ideal for any residential location where a clearly defined boundary is required, such as the perimeter or a garden, patio or terraced area, the Court metal fencing features a hoop to design for maximum safety whilst the solid steel components offer strength and rigidity. The Court design measures 950mm in height and includes surface mounted fitting brackets as standard. It also benefits from a rust and corrosion resistance zinc plated and black powder-coated paint finish.

Court Hoop Top Metal Fence Panel Specification

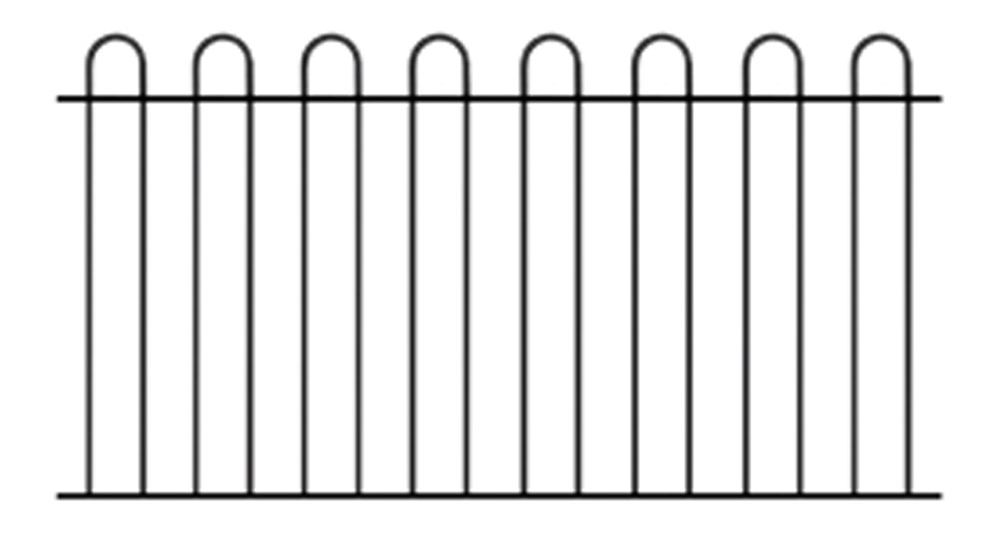

• Traditional hoop top design ensures safety.

• Manufactured from solid steel components.

• Constructed from 25mm x 10mm solid metal frames and 12mm infill bars.

• Zinc plated (electro galvanised) and powder-coated black.

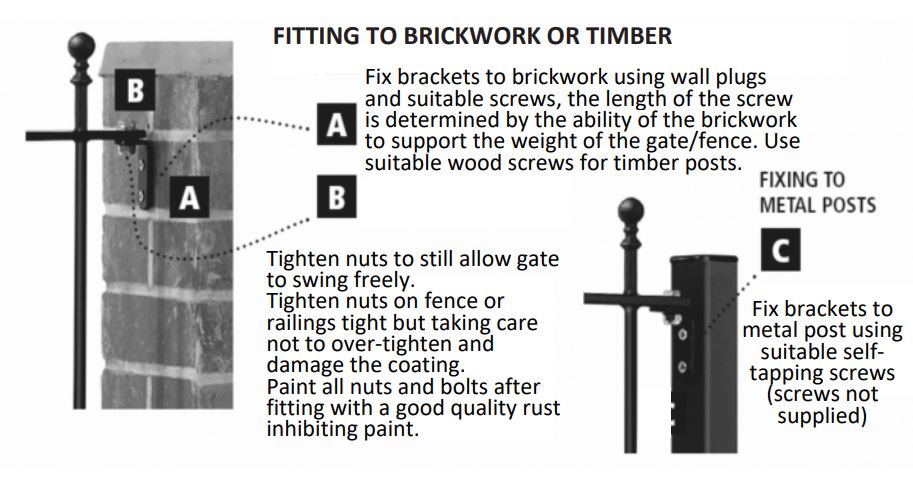

• Supplied with fitting brackets.

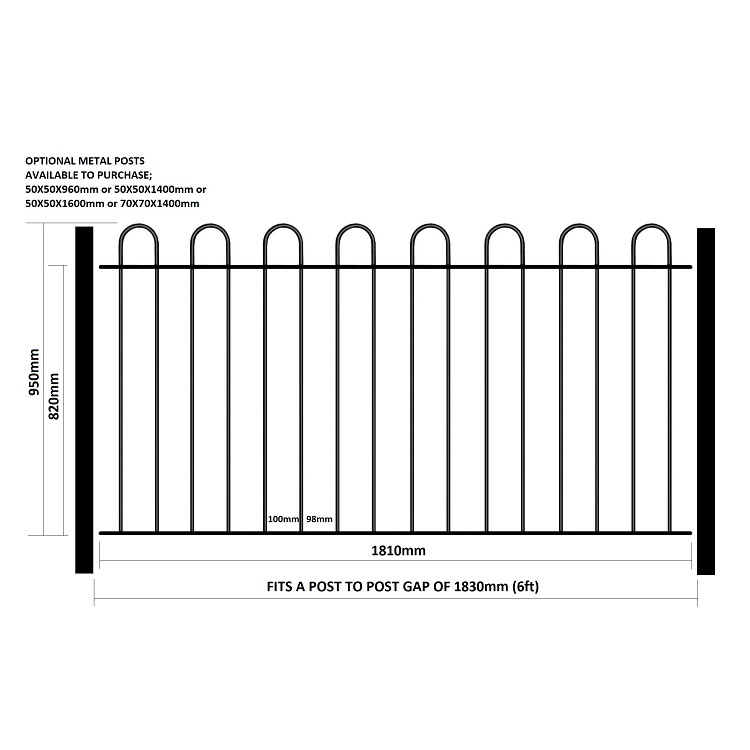

Fits Opening

• 1830mm (6ft)

Physical Height

• 950mm (37”)

Ordering Sizes

• Width: The “fits opening” size is the actual gap required between existing walls or posts. This measurement already includes the space needed for the brackets; therefore, no further allowances should be made.

• Height: The “physical height” does not allow for any ground clearance. When installing the fence, a gap of 50mm should be left between the underside of the frame and the floor.

Do You Need to Add Metal Posts?

If the installation location has no walls or posts in place or where a number of panels are required, you will need to add metal posts to your order. In these instances, you will need to factor in the additional space required for these items.

Examples

• 1 x panel and 2 x 50mm posts will need a total space of 1930mm.

• 2 x panels and 3 x 50mm posts will need a total space of 3810mm.

• 3 x panels and 4 x 50mm posts will need a total space of 5690mm.

Compatible Metal Fence Posts

If you need to order suitable posts these can be found here:

• 50mm (2”) Flat Top Square Metal Post – Concrete in

• 50mm (2”) Ball Top Square Metal Post – Concrete in

• 50mm (2") Flat Top Square Metal Post - Bolt Down

• 50mm (2") Ball Top Square Metal Post - Bolt Down

Looking for Help & Advice Before Placing an Order?

Read the measuring guide to find our more information about ordering sizes. Alternatively if you need a made to measure size or would like additinal information prior to ordering, please contact us.

Other Useful Pages

You can find lots of help and advice online if you refer to the frequently asked questions, buying guide, ordering guide, installation advice, technical advice and case studies pages.
