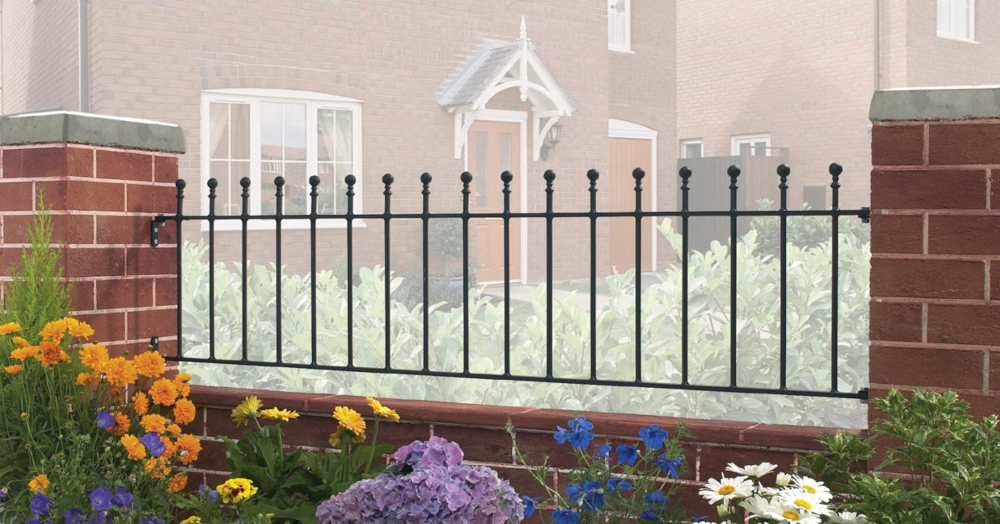

The Manor Wrought Iron Style Metal Railings are manufactured from solid steel components to ensure strength and rigidity, making them exceptional value. They feature a 25mm x 10mm flat bar framework and 12mm round infill bars and are fitted with timeless ball top finials for a subtle yet effective overall appearance. Suitable for boundary walls, raised patios, terraces or other similar locations, the Manor metal railing design includes the fixing brackets as standard. To achieve durability, the railings also benefit from a low maintenance and long-lasting zinc plated and black powder-coated paint finish designed to help protect against rust and corrosion.

Manor Metal Garden Railings Specification

• Manufactured from 25mm x 10mm frames and 12mm infill bars.

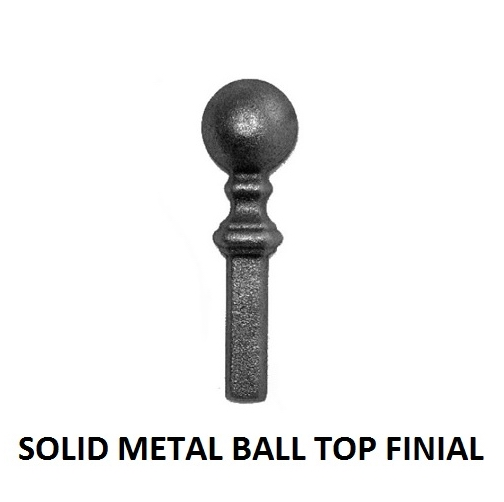

• Fitted with ball top finials.

• Zinc plated (electro galvanised) and powder coated black.

• Suitable for a range of residential locations.

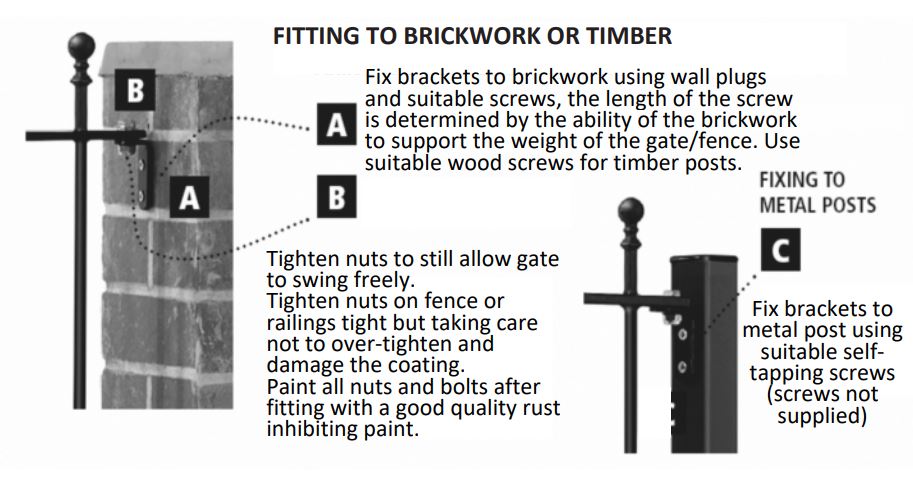

• Includes surface mounted fitting brackets.

• Ideal for fixing directly to brick, timber or metal posts.

Fits Opening

• 1830mm (6ft)

Physical Height

• 455mm (18")

Ordering Sizes

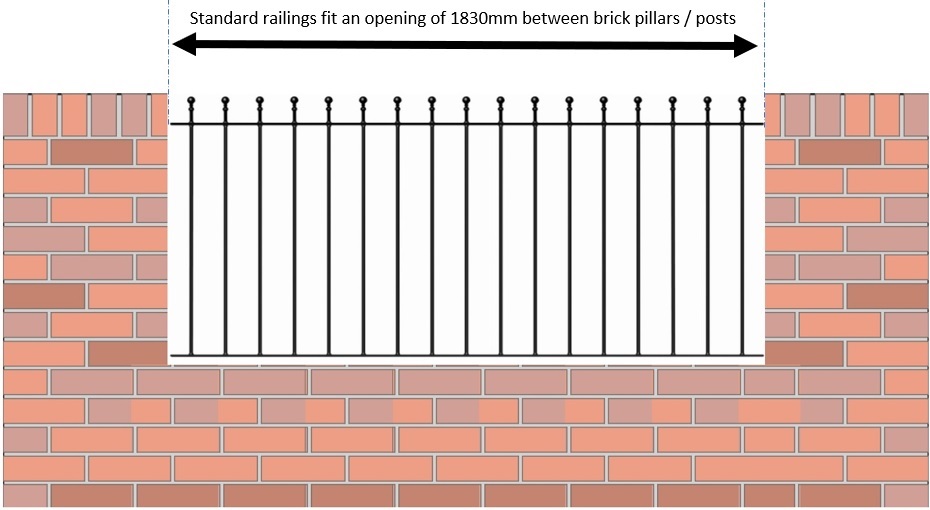

• Width: The "fits opening" size is the gap you will need between pre-existing pillars or posts. Within the dimension, we have already factored in the space necessary for the mounting brackets; therefore, you should not make any further calculations as this will lead to installation issues.

• Height: The "physical height" shown does not include any space required for ground clearance. For the best results, we recommend having 50mm (2") between the underside of the railings and the top of the wall.

Do you Need to Add Metal Posts?

Where no brick pillars are present, or you need to connect several panels to form a single run, the addition of bolt down metal posts will be required. If these items are required, the space taken up by the posts must be factored into your measurement.

Examples

• 1 x railing and 2 x 50mm bolt down posts will need a total distance of 1930mm.

• 2 x railings and 3 x 50mm bolt down posts will need a total length of 3810mm.

• 3 x panels and 4 x 50mm bolt down posts will need a total length of 5690mm.

Compatible Metal Posts

If you need to purchase appropriate posts, these can be found here:

• Flat Top Square Metal Post (Bolt Down)

• Ball Top Metal Post (Bolt Down)

Looking for More Information About Wrought Iron Style Railings?

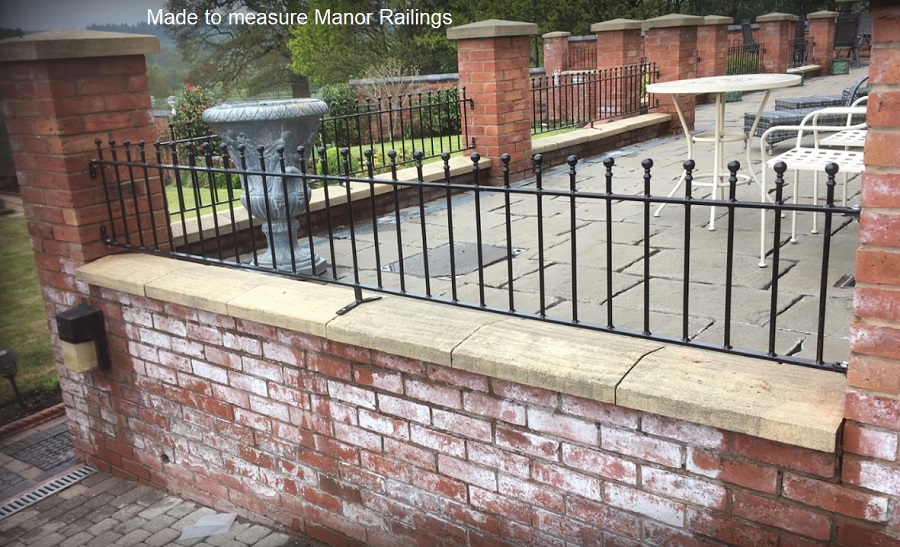

Please read the measuring guide for help with ordering dimensions or learn more about our made to measure service if you can't find the exact size you need.
